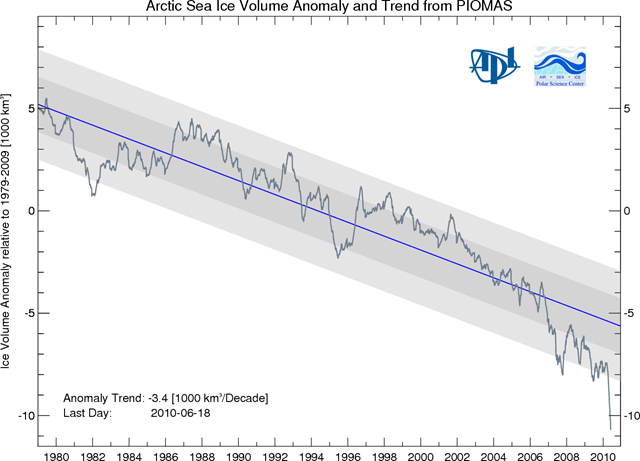

Graph of the Day: Arctic Sea Ice Volume Anomaly and Trend, 1979 – 18 June 2010
Sea Ice Volume is calculated using the Pan-Arctic Ice Ocean Modeling and Assimilation System (PIOMAS) developed at APL/PSC by Dr. J. Zhang and collaborators. Anomalies for each day are calculated relative to the average over the 1979 -2009 period for that day to remove the annual cycle. The model mean seasonal cycle of sea ice volume ranges from 28,600 km3 in April to 14,400 km3 in September. The blue line represents the trend calculated from January 1 1979 to the most recent date indicated on the figure. Total Arctic Ice Volume for March 2010 is 20,300 km3, the lowest over the 1979-2010 period and 38% below the 1979 maximum. PIOMAS calculates that the monthly average Arctic Sea Ice Volume for May 2010 was 19,000 km3, the lowest May volume over the 1979–2010 period, 42% below the 1979 maximum and 32% below the 1979–2009 May average. September Ice Volume was lowest in 2009 at 5,800 km3 or 67% below its 1979 maximum. Shaded areas represent one and two standard deviations of the anomaly from the trend. Updates will be generated at approximately two-weekly intervals.
